Product Overview

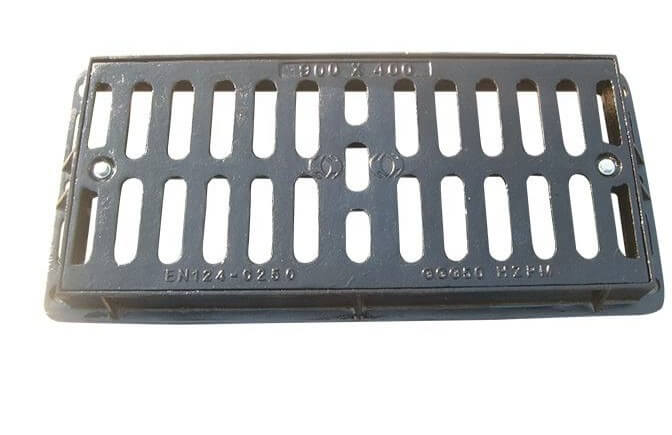

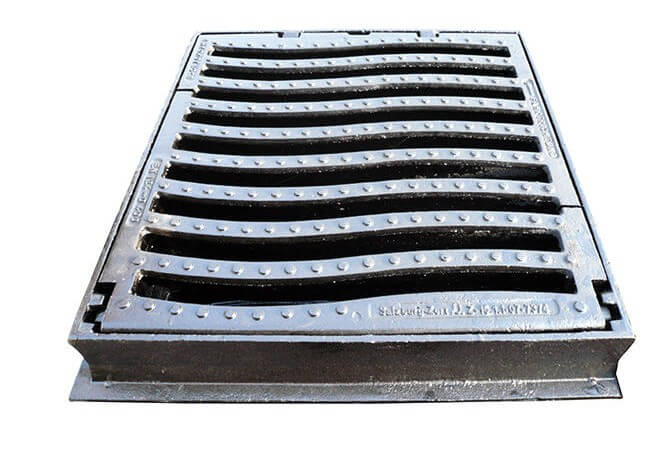

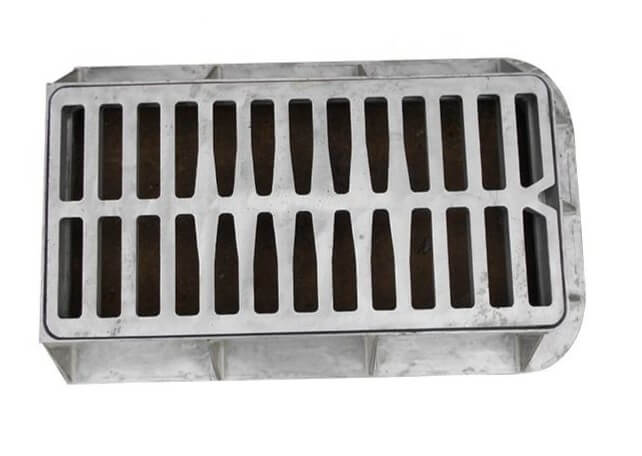

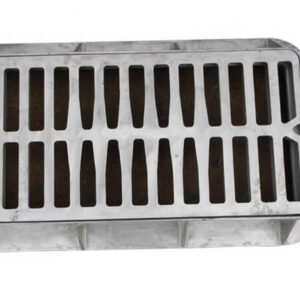

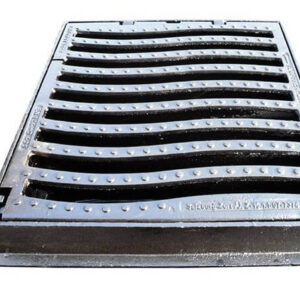

Heavy duty ductile iron gully grating with frame is designed for road drainage, stormwater collection, parking areas, industrial sites, and municipal infrastructure projects where stable installation and stronger load-bearing performance are required.
Compared with standard drainage gratings, this heavy duty gully grating with frame provides better seating, improved edge support, and more reliable performance in areas exposed to vehicle traffic, surface water flow, and long-term outdoor use. The open-slot design helps collect rainwater quickly and direct it into underground drainage systems.
For buyers comparing ductile iron grating options, this heavy duty model is better suited to projects where a stronger frame, stable seating and higher load-bearing performance are required. It is a practical option for road drainage channels, stormwater collection points and areas where vehicles may pass regularly.
Product Application / Project Use
This heavy duty ductile iron gully grating is suitable for roadside drainage channels, municipal stormwater collection points, parking area drainage, commercial streets, industrial site drainage systems, road shoulders, and infrastructure maintenance projects. It can be selected according to drainage capacity, installation position, expected traffic condition, frame requirement, and project specifications.
Ductile Iron Gully Grating for Road Drainage and Stormwater Collection
A ductile iron gully grating is not only used to cover a drainage opening. It also affects how surface water enters the drainage system, how the frame sits in the road structure, and how workers clean blocked leaves, mud, sand, and debris later.
For road drainage, parking areas, kerbside channels, sidewalks, industrial yards, and municipal stormwater projects, buyers should check the grating opening design, frame size, load class, drainage capacity, maintenance access, and installation position before ordering.
| Project Area | What Buyers Should Check | Why It Matters |
|---|---|---|
| Road drainage areas | Load class, frame stability, and traffic position | The grating may need to handle vehicle loads and road edge movement. |
| Kerbside drainage channels | Clear opening, water flow direction, and frame depth | Poor drainage opening design may slow surface water collection. |
| Parking areas | Vehicle type, turning wheels, and anti-slip surface | Cars, service trucks, or turning wheels may create different load conditions. |
| Stormwater collection points | Debris risk, leaf blockage, and cleaning access | Blocked grates can cause standing water, overflow, and higher maintenance work. |
| Municipal maintenance areas | Removable design, lifting slot, hinged option, or locking method | Workers need safe and practical access for inspection and cleaning. |
Maintenance Access Should Be Checked Before Ordering
Many drainage grate problems appear after installation. Leaves, mud, small stones, plastic waste, and road debris can block the opening. If the grating is too heavy, difficult to remove, or installed without a practical lifting method, regular cleaning becomes harder for the maintenance team.
Before requesting a quotation, buyers should confirm whether the project needs a removable grating, hinged grating, locking design, lifting slot, anti-theft feature, or custom frame size. These details can affect both the product design and long-term maintenance cost.
For heavy-duty road drainage applications, you can also review our D400 gully grating for road drainage. For more product options, visit our gully gratings category page or related drainage covers.
Specification Table
| Item | Specification |
|---|---|
| Product Name | Heavy Duty Ductile Iron Gully Grating with Frame |
| Material | Ductile Iron |
| Product Type | Heavy Duty Gully Grating / Drainage Grating |
| Design | Open-slot grating with frame |
| Frame Option | Grating with matching frame |
| Load Class | Customized according to project requirements |
| Surface Design | Anti-slip open-slot surface pattern |
| Size | Custom size available according to drawings, samples, or drainage channel dimensions |
| Surface Treatment | Black bitumen coating, painting, or custom coating |
| Applications | Road drainage, stormwater collection, parking areas, industrial sites, municipal drainage projects |
| Customization | Size, frame type, slot pattern, marking, coating, packaging |
| Packaging | Pallet, wooden case, or export-ready packaging |
| Order Type | Project order / bulk order / OEM customization |
Customization Options
Available customization options include grating size, frame type, slot pattern, load class, surface coating, marking, anti-theft structure, locking option, and export packaging. Buyers can provide drawings, samples, drainage channel dimensions, or project specifications for review.
For road drainage and stormwater collection projects, the required load class should be selected based on the installation area, traffic conditions, and
BS EN 124-1:2015 gully top and manhole top requirements
.
Common Applications
- Roadside drainage channels
- Municipal stormwater collection points
- Parking area drainage systems
- Commercial street drainage
- Industrial site drainage systems
- Road shoulders and access roads
- Urban infrastructure projects
- Drainage maintenance and replacement projects
Packaging and Export

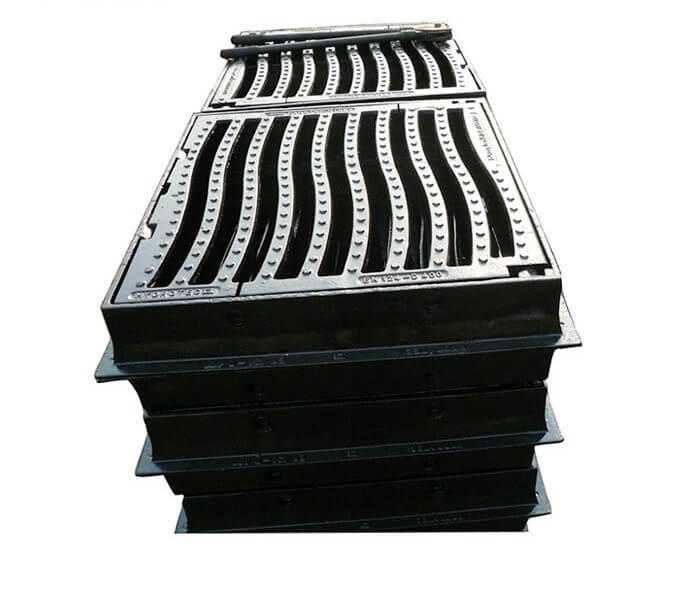

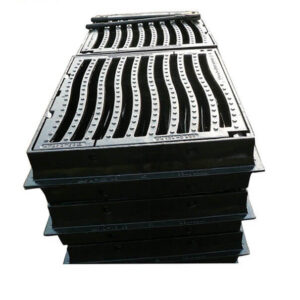

For export orders, heavy duty ductile iron gully gratings with frames can be packed with pallets, wooden cases, or other export-ready packaging methods. Proper packaging helps protect the frame edges, slot openings, surface coating, and heavy casting structure during loading, shipping, and unloading.
Related Products and Categories
For standard road drainage applications, you may also view our ductile iron gully grating for road drainage.
If you are comparing grating type, drainage capacity and installation environment, read our gully grating selection guide.
More drainage products are available in our gully gratings category and drainage covers category.
FAQ
What is the difference between a standard gully grating and a heavy duty gully grating with frame?
A heavy duty gully grating with frame is designed to provide better support, more stable seating, and improved installation performance in areas exposed to vehicle traffic or heavier outdoor use.
Can this gully grating be supplied with a matching frame?
Yes. This product can be supplied as a grating-and-frame set according to the installation requirement and drainage channel design.
Is this product suitable for parking areas and road drainage?
Yes. It is suitable for road drainage, parking area drainage, stormwater collection, commercial streets, industrial sites, and municipal infrastructure projects.
Can the slot pattern or frame size be customized?
Yes. Slot pattern, grating size, frame size, and drainage opening can be customized according to drawings, samples, or project specifications.
What information is needed to choose the right load class?
Buyers should provide the installation area, expected traffic condition, drainage channel size, and project standard. This information helps determine a suitable load class and grating design.
What surface treatments are available?
Common surface treatments include black bitumen coating, painting, and custom coating options according to project environment and buyer requirements.
How should buyers request a quotation?
Buyers can provide the required size, drawing, drainage channel dimensions, quantity, load requirement, frame requirement, surface treatment, and destination port. Clear project information helps us provide a more accurate quotation.
Request a Quote
Need heavy duty ductile iron gully gratings with frames for your road drainage, parking area, or stormwater collection project? Send us your drawing, size, drainage channel dimensions, quantity, load requirement, frame requirement, surface treatment, and destination port. Our team can help review the specification and provide a suitable quotation.
